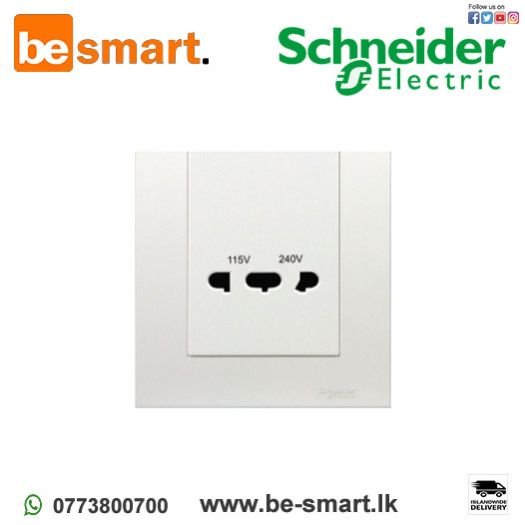

KBT727V-WE | Schneider vivace 115/240V Shaver Unit
Vivace shaver socket by Schneider electric is a 2 gang complete shaver unit mechanism. Its Ue rated operational voltage is 115-240VAC at 50 Hz. This device is designed to be flush mounted. The dimensions of the product are (W) 146mm x (H) 86mm x (D) 47mm. It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish. The Ambient air temperature for operation is from -5°C up to +40°C and Relative Humidity is from 0% to 95%. It reaches IP21 degree of protection.
LKR1.00
Seller TSN ONLINE
| Range | Vivace |
|---|---|
| Product or component type | Shaver socket |
| Device short name | KBT |
| Device application | Power supply |
| Device presentation | Complete mechanism |
| Colour tint | Wall: white |
| Number of gangs | 2 gangs |
|---|---|
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 120.6 mm |
| Embedding depth | 40 mm |
| Input voltage | 115 V AC AC |
| Output voltage | 240 V AC |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L N E |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2.5 mm² |
| Width | 146 mm |
| Height | 86 mm |
| Depth | 47 mm |
| Standards | IEC 61558-2-5 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | 0…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP21 |
