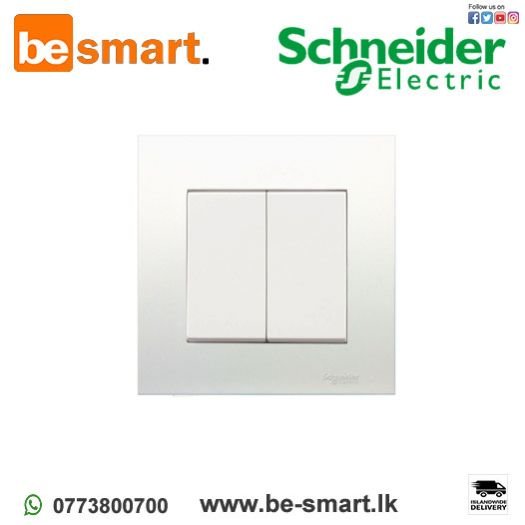

KB32-1-WE | Schneider Vivace Switch, 16AX, 250V, 1 way, 2 gang, white
This Schneider Electric Vivace 1-way switch is with a power supply application. A rocker/button is used for operating. The connection of the device is made with screw terminals. The device is of 2 gangs and 2 rockers. Its Ue-rated operating voltage is 250V and the rated current is 16AX. The frequency is 50/60Hz. This device enables flush mounting. The dimension of the product is (W) 86mm x (H) 86mm x (D) 37mm. The Embedded depth is 25mm. The color of this device is White with a Glossy finish. It is made of polycarbonate material. The Operating temperature is from -5°C up to +40°C. It reaches an IP20 degree of protection. The Relative Humidity is from 0% to 95%. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors. This device is compliant with IEC 60669-1, MS IEC 60669-1, and SS 227 standards.
LKR1.00
| Range | Vivace |
|---|---|
| Product or component type | Switch |
| Device short name | KB32 |
| Device application | Control switch |
| Number of rocker | 2 |
| Additional switch application | On/off switching |
| Switch function | 1-way |
| Colour tint | White |
| Technology type | Electromechanical |
|---|---|
| Device presentation | Complete product |
| Actuator | Rocker |
| Number of gangs | 2 gangs |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Surface finish | Glossy |
| surface treatment | Untreated |
| [Ue] rated operational voltage | 220...250 V |
| Type of packing | Plastic bag |
| Network type | AC |
| Quantity per set | 1 |
| Rated current | 16 AX |
| Sale per indivisible quantity | 1 |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| Connections - terminals | Screw terminal |
| Embedding depth | 25 mm |
| Number of terminals | 4 |
| Rated current | 16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent 16 A at 250 V AC, resistive |
| [Ue] rated operational voltage | 250 V AC |
| Network frequency | 50/60 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | 4 screw terminals |
| Terminal identifier | L1 COM L2 |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | <= 2.5 mm² for rigid or stranded cable(s) |
| Wire stripping length | 12 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 37 mm |
| Standards | IEC 60669-1 MS IEC 60669-1 SS 227 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
