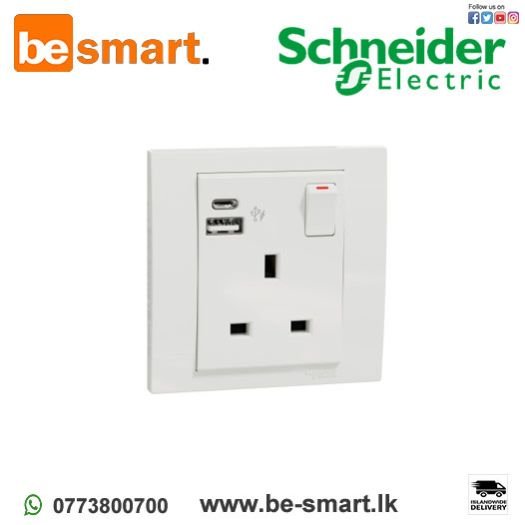

KB15DACUSB-WE | Schneider Vivace Switched socket with USB charger, 21W type A+C, 13A, white
This Schneider Vivace Socket outlet with an on-off switch and USB. The outlet pole configuration of this socket outlet is 2P + E. This device has an A+C USB-type power supply. The A port and C port support fast-charging, supporting QC 2./3., PD 2./3., FCP, AFC, Apple 2.4, Samsung 2. and BC 1.2. It is protected by over-temperature protection with overcurrent protection, over-voltage protection. It is used as power devices and charge appliances, it allows charge devices without an adapter, which is very convenient for the end-user. The rated current of the socket is 13A and the rated operational voltage is 25VAC. For USB, the rated current is .45A, and the rated operational voltage is 22V-25VAC. The maximal standby power is .3W. Output maximal power is 21W. This device enables flush mounting, to be installed in 35mm BS wall box. The dimensions are (W) 86mm x (H) 86mm x (D) 37.2mm and the Embedding depth is 28.8mm. The color of the product is White with Glossy surface finishing. This power socket outlet with USB type A + C charger is made of polycarbonate material. The operating temperatures are from °C to -35°C. The Relative Humidity is from 1% to 9%. The IP rating of this device is IP2. One kit consists of 1 socket. The Vivace is a slim, trim profile that is pleasing to the eye, clean, and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. This device is compliant with BS 1363-2, IEC EN BS 62368-1, IEC EN 6268-1-1, BS EN IEC 61-6-3, BS EN IEC 61-6-1. This device has SIRIM, Safety Mark, GCC, SQM certificate.
LKR1.00
| Range | Vivace |
|---|---|
| Product or component type | Switched socket with USB charger |
| Device presentation | Complete product |
| Socket additional information | Shuttered |
| Colour tint | White |
| Type of packing | Plastic bag |
| Quantity per set | 1 |
| Sale per indivisible quantity | 1 |
| Type of USB power supply | USB type A + C |
| Socket number | 1 |
|---|---|
| Device mounting | Flush 32 mm |
| Local signalling | Without light indicator |
| Switch function | ON/OFF power-socket outlet |
| Number of power socket outlets | 1 x 2P + E, BS 1363 |
| Rated current | 13 A 220...250 V, AC, 50/60 Hz |
| Surface finish | Glossy |
| surface treatment | Untreated |
| Number of gangs | 1 gang |
| Connector type | 3-pin USB type A USB type C |
| [Ue] rated operational voltage | 220...250 V AC 50/60 Hz 5 V DC |
| Power consumption in W | 21 W |
| Integrated connection type | 2 USB port 5 V DC |
| Material | PC (polycarbonate): body and cover |
| Protection type | Over temperature protection Overload protection |
| Shape of screw head | Cross slotted |
| Screwdriver shape | Phillips combined |
| Electrical connection | 3 3 screw terminals (indoor use) |
| Clamping connection capacity | 1 x 2.5...1 x 4 mm² for rigid or stranded cable(s) |
| Wire stripping length | 10…12 mm |
| Mounting support | Wall box conforming to BS 1361 |
| Fixing mode | By screws M3.5 x 25 mm |
| fixing center | 60.3 mm |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 41.9 mm |
| Embedding depth | 30.6 mm |
| Main colour tint | White |
| Operating altitude | 0...3000 m |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | 0…55 °C |
| Relative humidity | 0…90 % |
| Standards | BS 1363 |
| IP degree of protection | IP20 |
