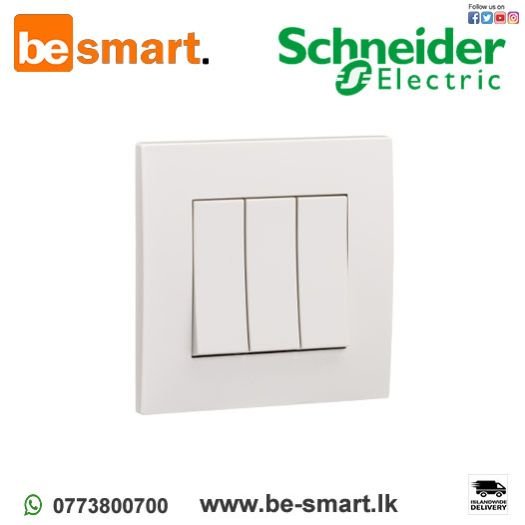

KB33-1-WE | Schneider Vivace - 16AX 250V 3Gang 1Way Switch - white
This Schneider Electric Vivace 1-way switch is with a power supply application. A rocker/button is used for operating. The connection of the device is made with screw terminals. The device is of 3 gangs and 3 rockers. Its Ue-rated operating voltage is 250V and the rated current is 16AX. The frequency is 50/60Hz. This device enables flush mounting. The dimension of the product is (W) 86mm x (H) 86mm x (D) 37mm. The Embedded depth is 25mm. The color of this device is White with a Glossy finish. It is made of polycarbonate material. The Operating temperature is from -5°C up to +40°C. It reaches an IP20 degree of protection. The Relative Humidity is from 0% to 95%.
LKR1.00
| Range | Vivace |
|---|---|
| Product or component type | Switch |
| Device short name | KB33 |
| Device application | Control switch |
| Number of rocker | 3 |
| Additional switch application | On/off switching |
| Switch function | 1-way |
| Colour tint | White |
| Technology type | Electromechanical |
|---|---|
| Device presentation | Complete product |
| Actuator | Rocker |
| Number of gangs | 3 gangs |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Surface finish | Glossy |
| surface treatment | Untreated |
| [Ue] rated operational voltage | 220...250 V |
| Type of packing | Plastic bag |
| Network type | AC |
| Quantity per set | 1 |
| Rated current | 16 AX |
| Sale per indivisible quantity | 1 |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| Connections - terminals | Screw terminal |
| Embedding depth | 25 mm |
| Number of terminals | 6 |
| Rated current | 16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent 16 A at 250 V AC, resistive |
| [Ue] rated operational voltage | 250 V AC |
| Network frequency | 50/60 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | 6 screw terminals |
| Terminal identifier | L1 L2 COM |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | <= 2.5 mm² for rigid or stranded cable(s) |
| Wire stripping length | 12 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 37 mm |
| Standards | IEC 60669-1 MS IEC 60669-1 SS 227 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
