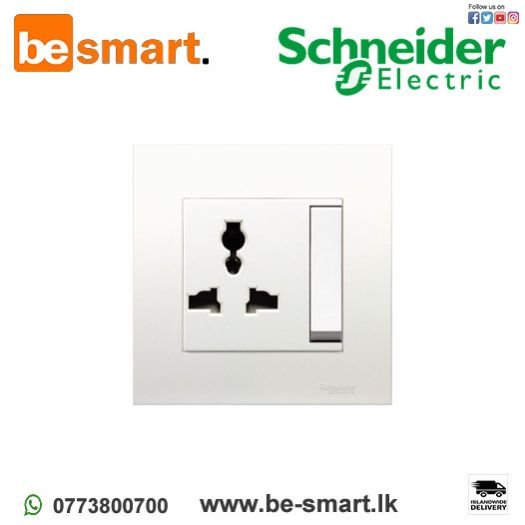

KB113LS-WE | Schneider Vivace Switched Socket, Universal, 13A, 250V, 1 gang, 3 pin, white
Vivace switched socket by Schneider electric is a Universal 2P+E, 3 pin socket-outlet operated by means of Rocker/button. Its UE rated operational voltage is 250VAC at 50 Hz. Its Ie rated operational current is 13A. This device is designed to be flush mounted. The dimensions of the product are (W) 86mm x (H) 86mm x (D) 35mm. It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish. The Ambient air temperature for operation is from -5°C up to +40°C and Relative Humidity is from 0% to 95%. It reaches IP20 degree of protection. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors. The product complies with the IEC 60884 standard.
LKR1.00
| Range | Vivace |
|---|---|
| Product or component type | Switched socket |
| Device short name | KB113 |
| Device application | Power supply |
| Device presentation | Complete product |
| Switch application | On/off switching |
| Main colour tint | White |
| Colour tint | White |
| Pilot light | Red neon indicator |
|---|---|
| Outlet poles configuration | 2P + E |
| Number of gangs | 1 gang |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| Embedding depth | 22.0 mm |
| Rated current | 13 A at 250 V AC, no inductive load |
| Network frequency | 50/60 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L N Earth |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 3 x 2.5 mm² 2 x 4 mm² |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 35 mm |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | <= 2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
