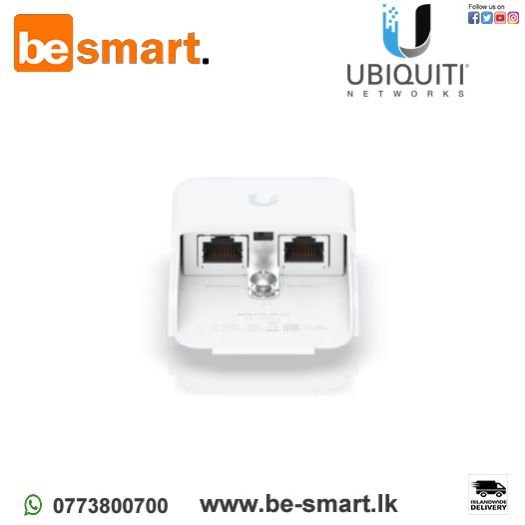

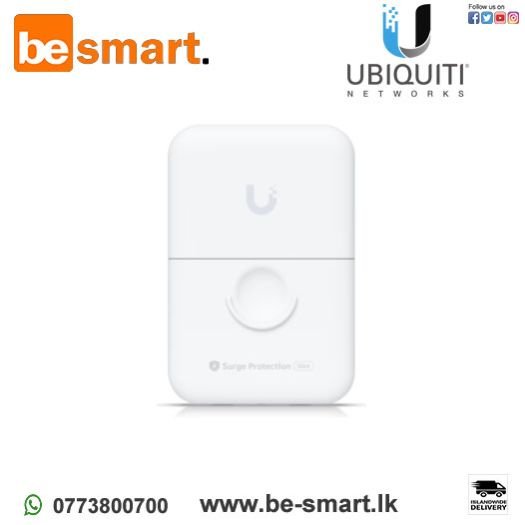

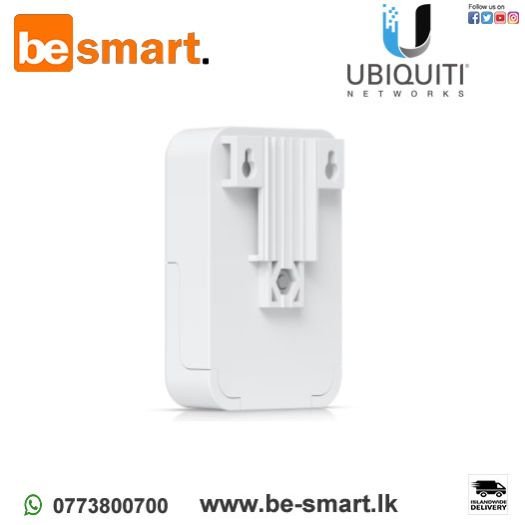

ETH-SP-G2 | Ubiquiti Ethernet Surge Protection Outdoor
ESD protection for outdoor high-speed networks.
LKR1.00
Seller TSN ONLINE
Dimensions - 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight - 80 g (2.8 oz)
Enclosure Material - Polycarbonate
Weatherproofing - IPX5
Networking Interface - (2) RJ45 female connectors
DC Spark-Over Voltage - 90V @ 100V/s
Max. Impulse Spark-Over Voltage - 700V @ 1kV/µs
Discharge Current - 10kA+
Insulation - Max. Resistance: 1G ohm @ 50V
Max. Capacitance - 1.0 pF @ 1 MHz
Data Line Protection - Up to 2.5 Gbps
PoE Support - ✓
ESD Protection - Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature - -30 to 65° C (-22 to 149° F)
Ambient Operating Humidity - 10 to 90% noncondensing
Shock and Vibration Certification - ETSI300-019-1.4 Standard
