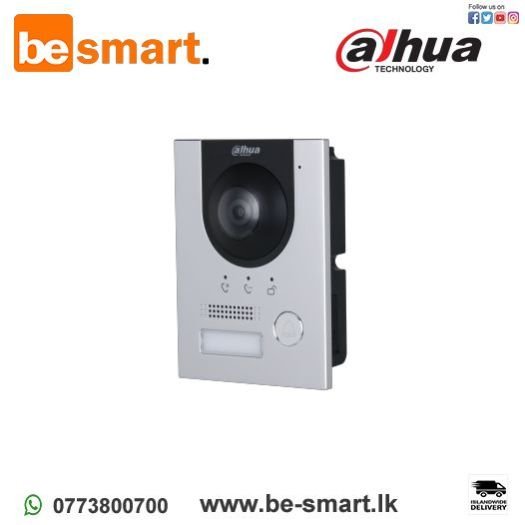

DHI-VT02201F-P-S2 | IP Villa Door Station
Anodized aluminum front panel. | CMOS low illumination 2MP HD colorful 168.6°camera. | Video intercom function. | Provides 12 VDC, 600 mA power. | Mobile phone app, talk to the visitor or unlock the door remotely on your phone. | IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide). |Support surface and flush mount. | Support H.265 and H.264. | Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
LKR1.00
Seller TSN ONLINE
System
- Main Processor - Embedded Processor
- Operating System - Embedded Linux Operation System
- Button Type - Mechanical
- Number of Buttons - 1
- Interoperability - ONVIF; CGI
- Network Protocol - IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Basic
- Camera - 1/2.9" 2 MP CMOS
- Field of View - H:168.6°; V:87.1°; D:176.7°
- WDR - 120 dB
- Noise Reduction - 3D NR
- Video Compression - H.265; H.264
Video Resolution
- Main stream: 720p; WVGA; D1; CIF
Sub stream: 1080p; WVGA; D1; QVGA; CIF - Video Frame Rate - 25 fps
- Video Bit Rate - 256 Kbps to 8 Mbps
- Light Compensation - Auto IR
- Day/Night - Auto(ICR)/Color/B/W; Color/B/W
- Audio Compression - G.711a; G.711u; PCM
- Audio Input - 1 channel
- Audio Output - Built-in speaker
- Audio Mode - Two-way audio
- Audio Enhancement - Echo suppression/digital noise reduction
- Audio Bit Rate - 16 kHz, 16 bits
Function
- Communication Mode - Full digital
- Unlock Mode - Remote
- Leave Videos - Yes (SD card is inserted in the indoor monitor or door station)
- Storage - Supports Micro SD card (up to 256 GB)
- Web Configuration - Yes
Performance
- Casing Material - Aluminum
Port
- RS-485 - 1
- Alarm Output - 1
- Power Output - 1 port, 12 V/600 mA
- Exit Button - 1
- Door Status Detection - 1
- Lock Control - 1
- Network Port - 1 × RJ-45 port, 10 Mbps/100 Mbps network port
